700G Vacuum Suction Machine

We have been committed to the production technology of Vacuum Suction Machine for many years. The 700G Vacuum Suction Machine we provide adopts pure copper motor and Schneider electrical accessories. The high-quality machine has the characteristics of strong suction and simple operation. The 700G Vacuum Feeder has a warranty period of 365 days, and we cover most of the markets in Europe and America. We look forward to becoming your high-quality supplier for long-term cooperation in China.

ສົ່ງສອບຖາມ

ລາຍ​ລະ​ອຽດ​ຜະ​ລິດ​ຕະ​ພັນ

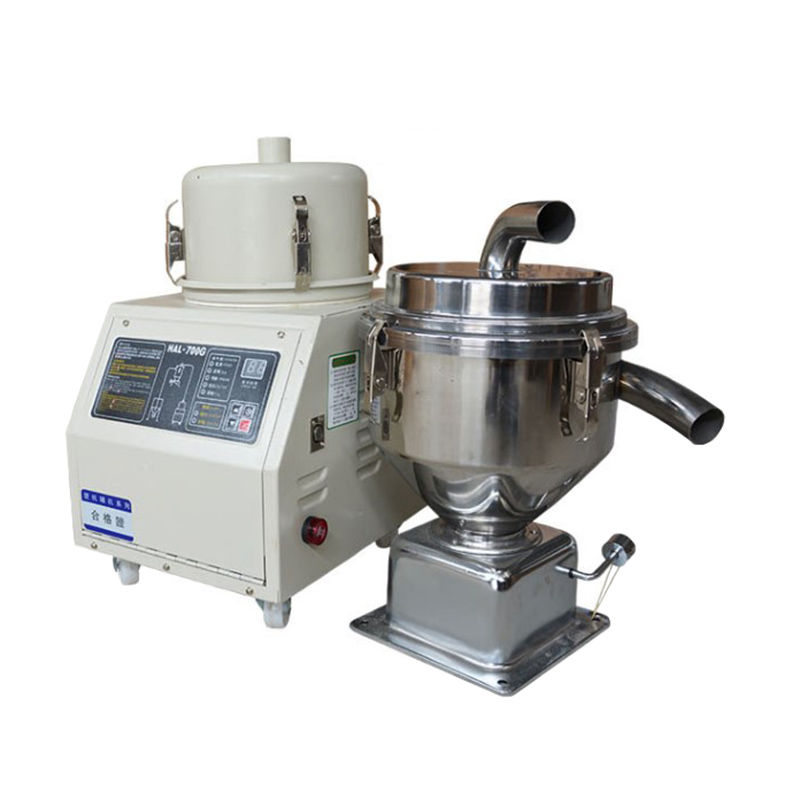

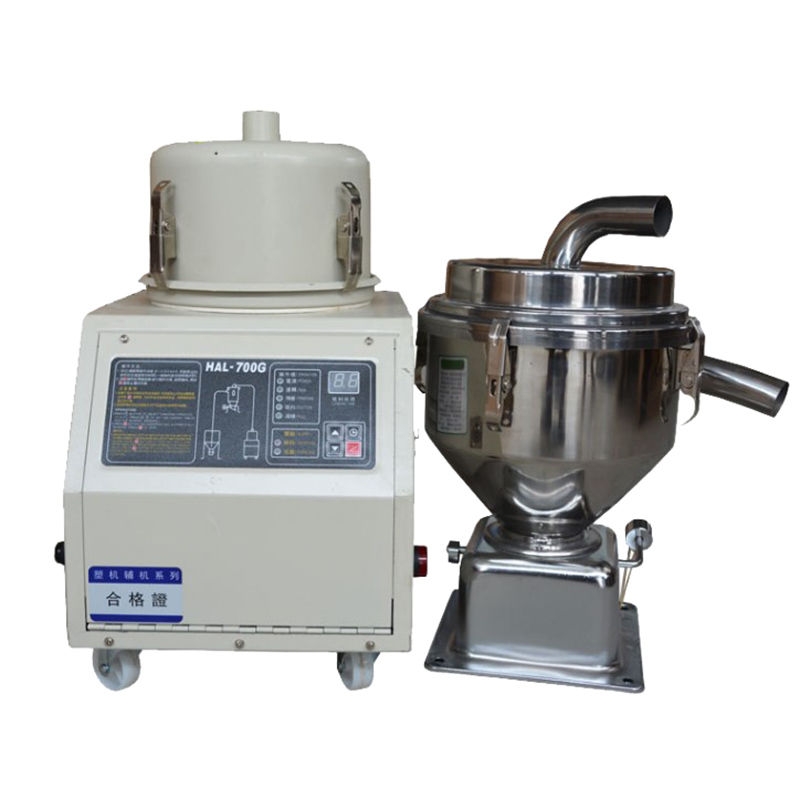

700G Vacuum Suction Machine Introduction

This 700G Vacuum Suction Machine is widely used in the pellet material conveying industry of injection molding machines, extruders, chemicals, food and other equipment.


It has convenient installation, simple operation, strong long-distance conveying capacity, stable production, and reliable operation. It is an auxiliary equipment to realize fully automated production.


The suction machine is composed of core components such as a vacuum motor, a vacuum bucket, a reset switch, and a computer board. The service life can reach 10-15 years. The suction machine can be divided into independent suction machine and split suction machine.


The independent suction machine adopts 1.1KW carbon brush motor. If the motor is damaged, the carbon brush can be replaced. The split suction machine adopts induction motor, the power can be from 0.75KW to 7.5KW.

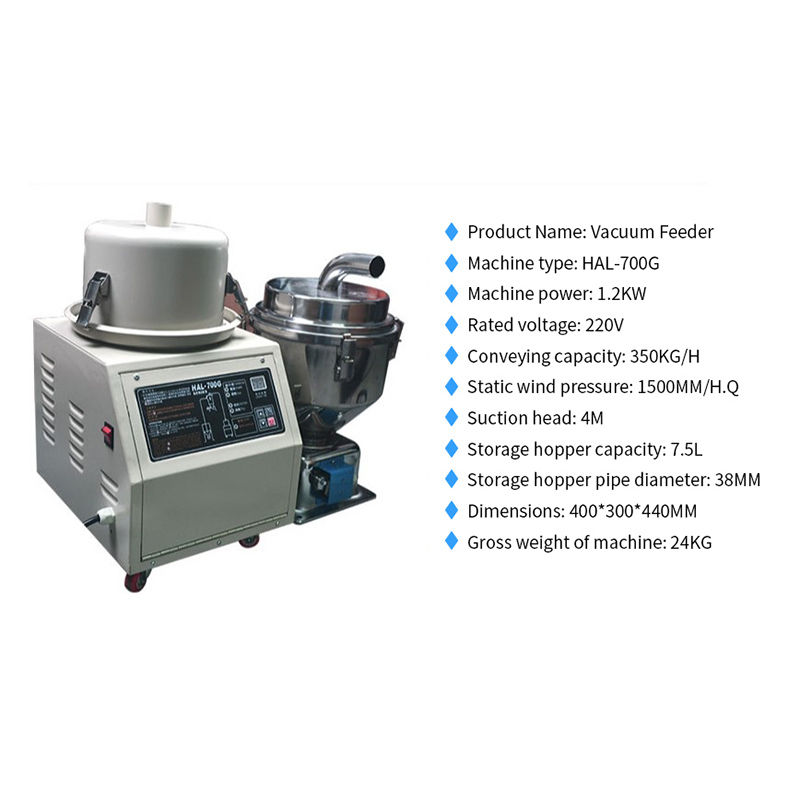

700G Vacuum Suction Machine Parameters

Model

JSXL-300G

JSXL-400G

JSXL-700G

JSXL-800G

JSXL-900G

Type

Carbon Brush

Induction

Carbon Brush

Induction

Induction

Motor power

1100w1φ220V

1100w3φ380V

1100w1φ220V

1100w3φ380V

1100w3φ380V

Conveying Capacity(kg/hr)

350

400

350

400

400

Static wind pressure(MAX)

1500mmAq

1800mmAq

1500mmAq

1800mmAq

1800mmAq

Volune of Material Hopper(L)

7.5

7.5

7.5

7.5

7.5

Inside Diamerer of
 Conveying Pipe(mm)

φ38

φ38

φ38

φ38

φ38

Dimensions(Main Body WD)

480x310x430

770x460x460

700X500X350

740x400x700

740x400x700

Dimensions(Material Hopper)HWD

430x440x295

weight(Main Body)HWD

15

25

30

45

55

weight(Material Hopper)HWD





Characteristics Of Vacuum Suction Machine

Features

1. Simple operation, easy maintenance, fully automatic computer operation program;
2. Stainless steel hopper;
3. Complete motor protection device;
4. With automatic alarm function for overload and lack of material;
5. The 300G Vacuum Feeder and 400G Vacuum Feeder adopt independent volume design, the main unit and the hopper are integrated, and the appearance is small and easy to install. 700G Vacuum Feeder, 800G Vacuum Feeder, 900G Vacuum Feeder main unit and barrel are designed separately, which is safe and easy to operate; 800G and 900G models can be customized for high power, super suction and large suction capacity.
6. Independent filter device, convenient to remove dust;
7. 700 suction machine, 800G suction machine, 900G suction machine can choose the power distribution eye to detect the machine exit and feed inlet when directly installed.

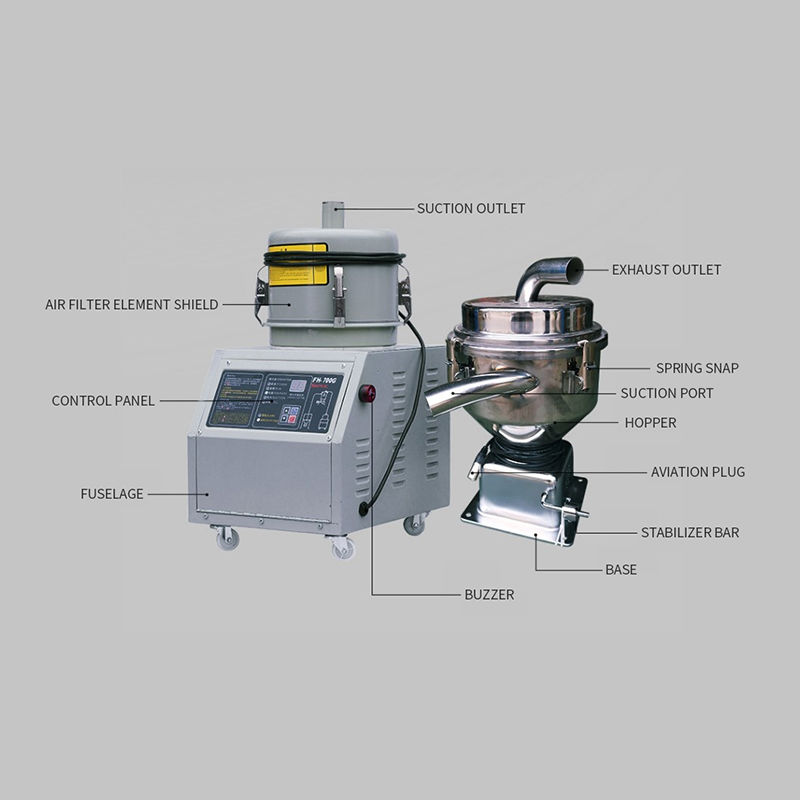

300G Vacuum Suction Machine Structure Diagram


700G Vacuum Suction Machine


800G Vacuum Suction Machine



900G Vacuum Suction Machine



700G Vacuum Suction Machine case diagram


Deliver,Shipping And Serving

Buyer: How long is the warranty period of the 700G Vacuum Suction Machine?

Seller: Starting from the date of production and leaving the factory, the warranty is free for one year. If both parties confirm that the damage is due to quality reasons, a 12-month free warranty will be provided.



Buyer: What is your payment method?

Seller: We accept TT, XT, LC, Western Union money transfer. Through wire transfer and other methods, a 50% deposit is required for production, and the balance is paid before shipment.



Buyer: What is the lead time for v700G Vacuum Suction Machine production?

Seller: 12KG-500KG standard model dryers are available in stock and will be shipped within 2 days after receipt. The production cycle of non-standard customized models is subject to the actual quantity. Generally, non-standard products will be shipped within 25 working days after receiving the deposit.



Why choose Jiusheng?

Because we are the source manufacturer, we can save the price difference of the middleman from the source and supply wholesale. Jiusheng specializes in the 700G Vacuum Suction Machine industry for many years. Have strong technology and perfect service. We are committed to the production and sales of various industrial chillers, mold temperature controllers, grinders, mixers, feeders, cooling towers, dehumidifiers and other auxiliary equipment. After 20 years of development, Joyson can provide hundreds of different types of non-standard customized auxiliary machines, which are widely used in various industries around the world. According to regular customer feedback, the quality of the machines provided by Jiusheng has been well received and recognized, and can operate stably for more than 10 years.



Common Problem

Q1: Are you a manufacturer?

A1: Yes, we have 20 years of manufacturing experience. We are located in Renzhou Industrial Zone, Shatian Town, Dongguan City, Guangdong Province, China. Welcome anytime!


Q2: Can you help us recommend a model suitable for our project?

A2: Yes, we have engineers professionally calculate for you, and reasonably recommend the machine suitable for your use. Our engineers can check the details and make the structure. Based on the following points: 1) function recommendation; 2) power matching; 3) size determination 4) voltage recommendation; 5) applicable industry 6) machine drawings (if any) 7) other special requirements, etc.


Q3: How to ensure that your products are of good quality?

A3: We use core components for international brand accessories, such as French Schneider Electric, etc. The configuration devices have been load tested to ensure good quality and easy installation for users.


Q4: How long is the 700G Vacuum Suction Machine warranty period?

A4: Counting from the date of production and leaving the factory, the free warranty is within one year. If both parties confirm that the damage is caused by quality reasons, a 12-month free warranty will be provided.


Q5: What is your payment method?

A5: We accept TT, LC, Western Union money transfer. By wire transfer and other methods, a 50% deposit is required for production, and the balance is paid before shipment.


Q6: Can you design for us?

A6: Yes, we can customize production according to user requirements.


Q7: What is the lead time for production?

A7: Standard model machines are available in stock, and they will be shipped from the factory within 2 days after receipt. The production cycle of non-standard customized models is determined by the actual quantity. Generally, non-standard products will be delivered within 25 working days after receiving the deposit.


Why choose to buy a 700G Vacuum Suction Machine from us?

A. We have 20 years of production technology experience.

B. We can provide you with more suitable solutions.

C. Can provide you with multiple requirements for customized services.

D. Stable quality + fast delivery time + reasonable price + strong technical support + intimate after-sales service.

E.Our company has CE certification.


Our Honor Certificate


Thank you for your patience to read!

If you need to inquire about prices and technical questions, please call 13925748878 Miss Zhu or click on customer service to answer you, we will provide you with the best quality service.







Hot Tags: 700G Vacuum Suction Machine, China, Quality, Cheap, In Stock, Customized, manufactures, Suppliers, Factory, Made in China, Durable, Classy, Fancy, Easy-maintainable, Price List, Quotation, CE, 1 Year Warranty
